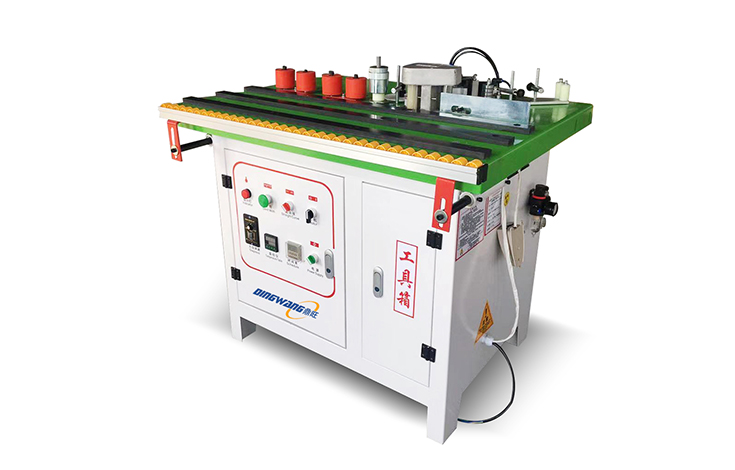

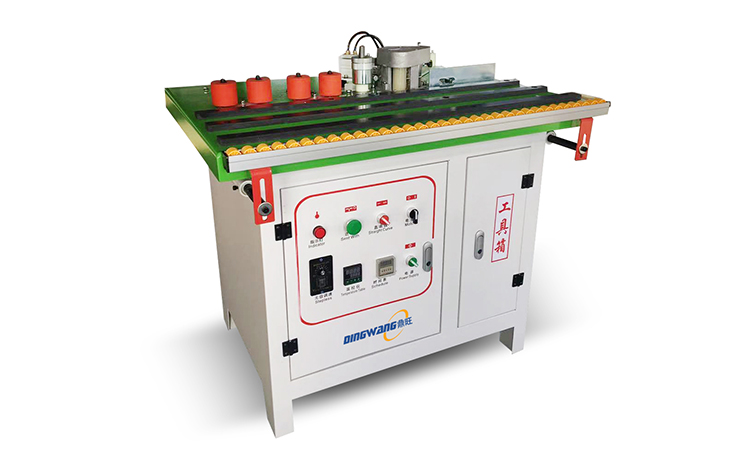

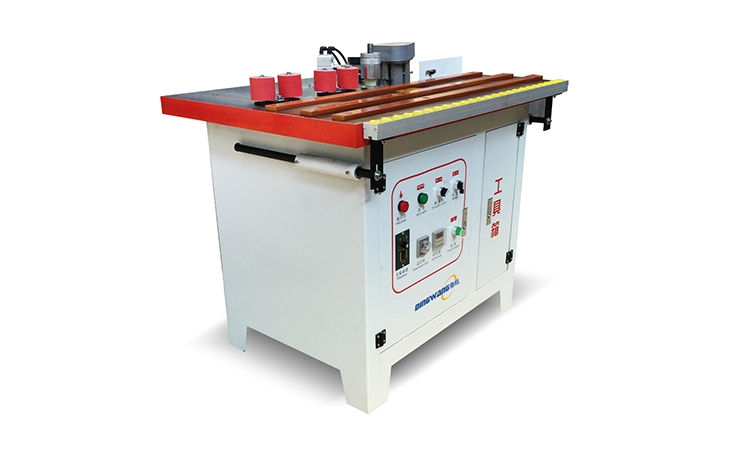

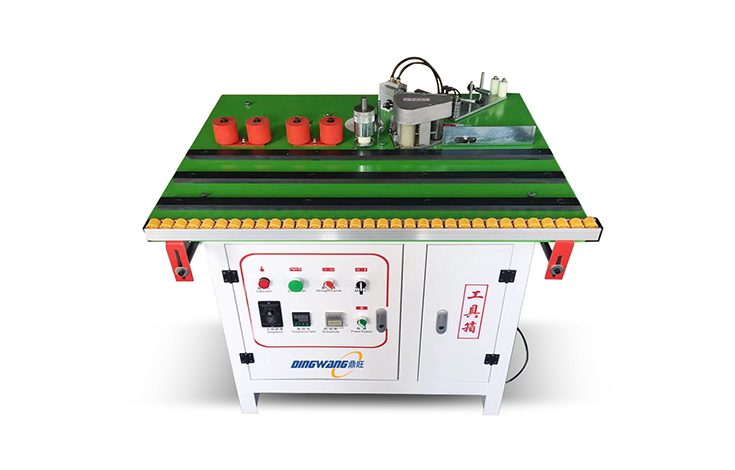

The model DW-TS edge banding machine can be used for curved and straight edge banding of medium-density fiberboard, particle board, MDF, solid wood board, plywood, polymer board, fireproof board, and other wood-based panels. The selected edge strips are mainly PVC, polyester, melamine, and wood strips. It is mainly used for edge sealing of panel furniture. It is characterized by high efficiency, high precision, and aesthetics. It has been widely used in panel furniture manufacturers.
Curve Edge Banding Machine:
1 . Four pressure belts , double-sided gluing , sealing strips are firm and do not fall off.
2 . Infinitely adjustable speed , automatic tape breaking , flexible in use .
3 . Intelligent temperature control , accurate and convenient , prevent wrong operation , easy to operate.
4 . Dual cylinders , customized cutter , exquisite craftsmanship , rapid response .
5 . Pure copper motor , selected original parts , longer use.

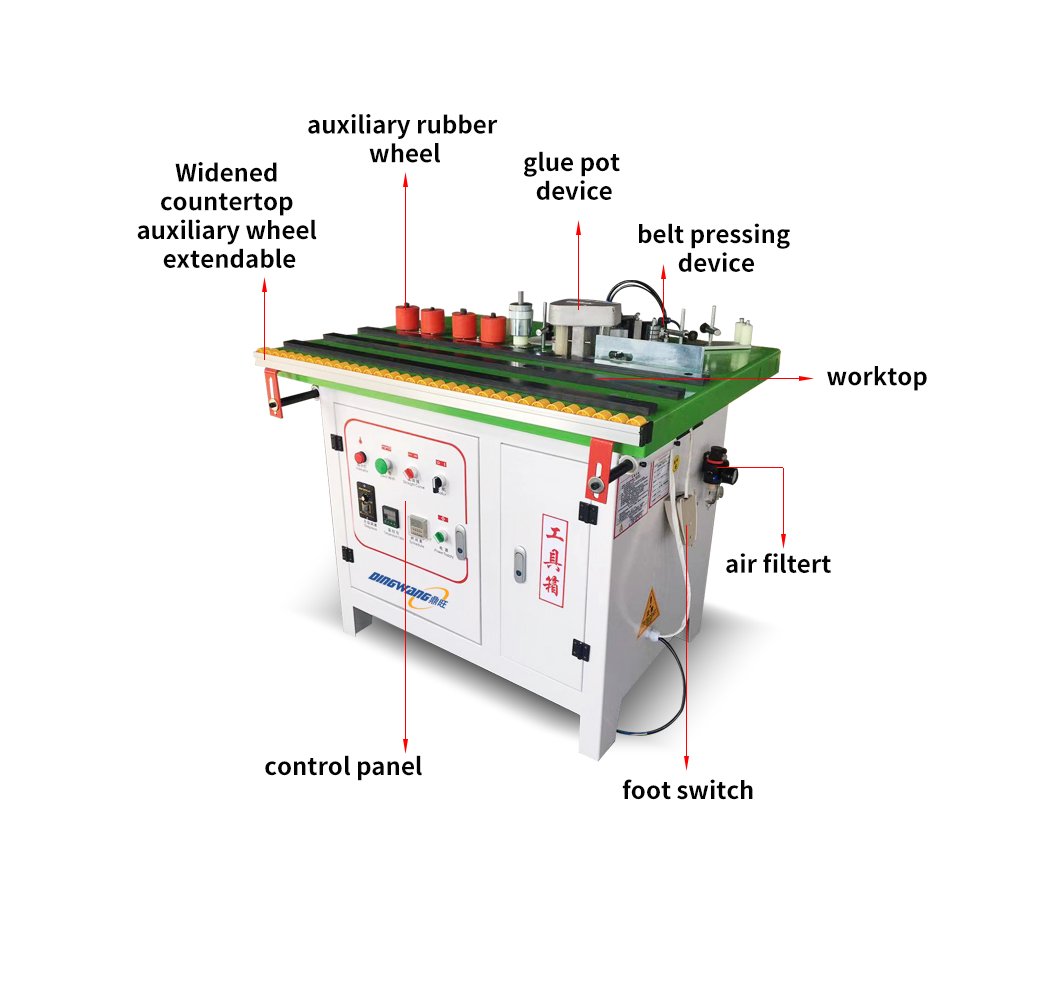

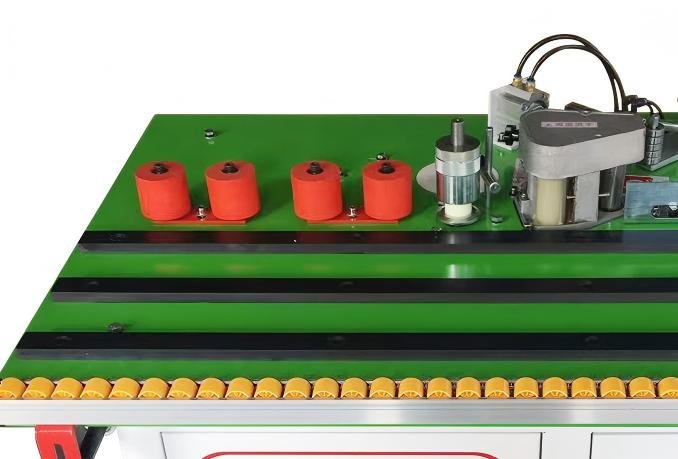

Auxiliary pressure roller
It comes with two sets of red auxiliary wheels as standard. For straight edge banding, there will be no deviation, and it can press more than twice, making the edge banding more secure.

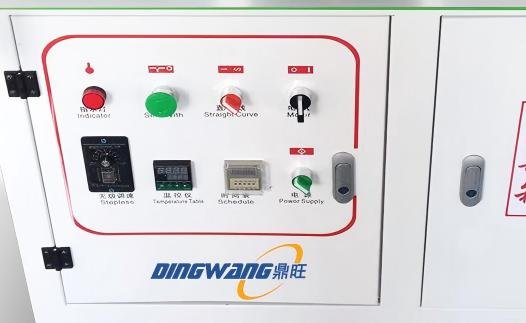

Control panel
Independent control buttons clearly indicated, equipped with well-known electrical components, not easy to damage.
Glue pot
It adopts a large-capacity glue pot. The glue supply volume is adjustable. It has a simple structure, is easy to disassemble and clean, and can extend the service life.
| Equipment Model | DW-TS | Total Power | 1.5KW |
| Equipment size | 1050*740*1080MM | Running Speed | stepless speed regulation |
| Weight | 110KG | Processing Thickness | 8-58MM |
| Working Air Pressure | 0.6-0.8MPA | Minimum Machining Width | 50MM |
| Minimum Machining Length | 120MM |
