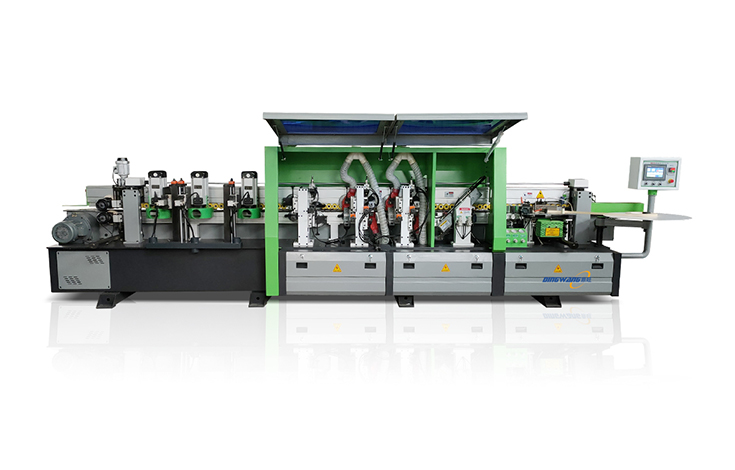

Our high-performance edge-banding machine adopts advanced technology and robust steel plate design, high-quality accessories, ensuring the durability and stability of the equipment, perfect trimming effect. Encoder control operation is simple, low maintenance rate. It is suitable for the whole house custom edging, wardrobe edging, cabinet edging, PVC edging and wooden door edging can show excellent performance.

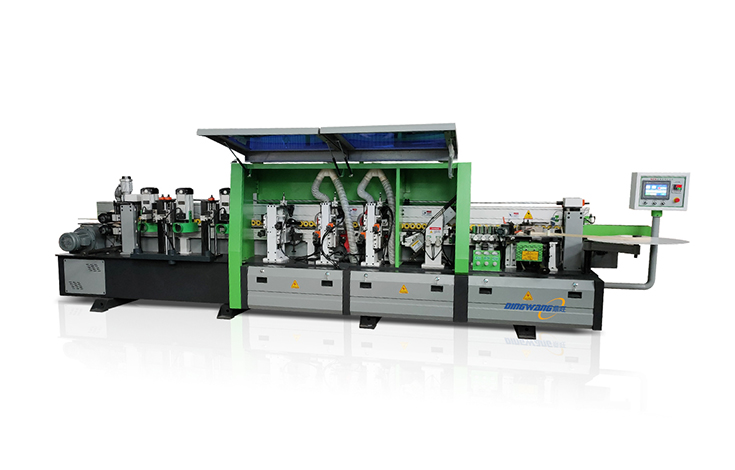

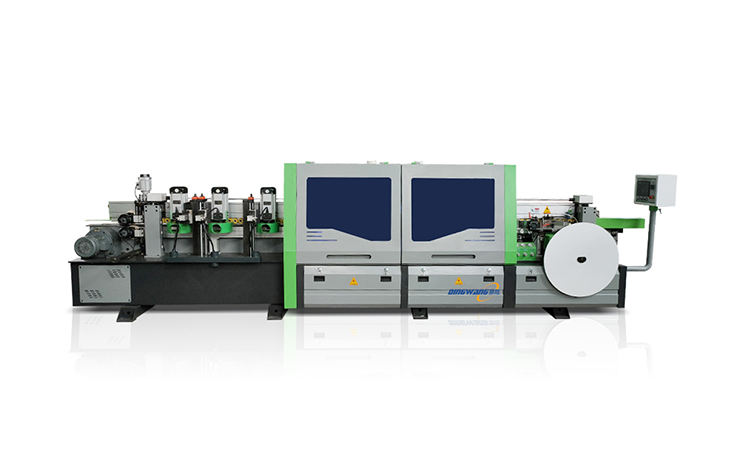

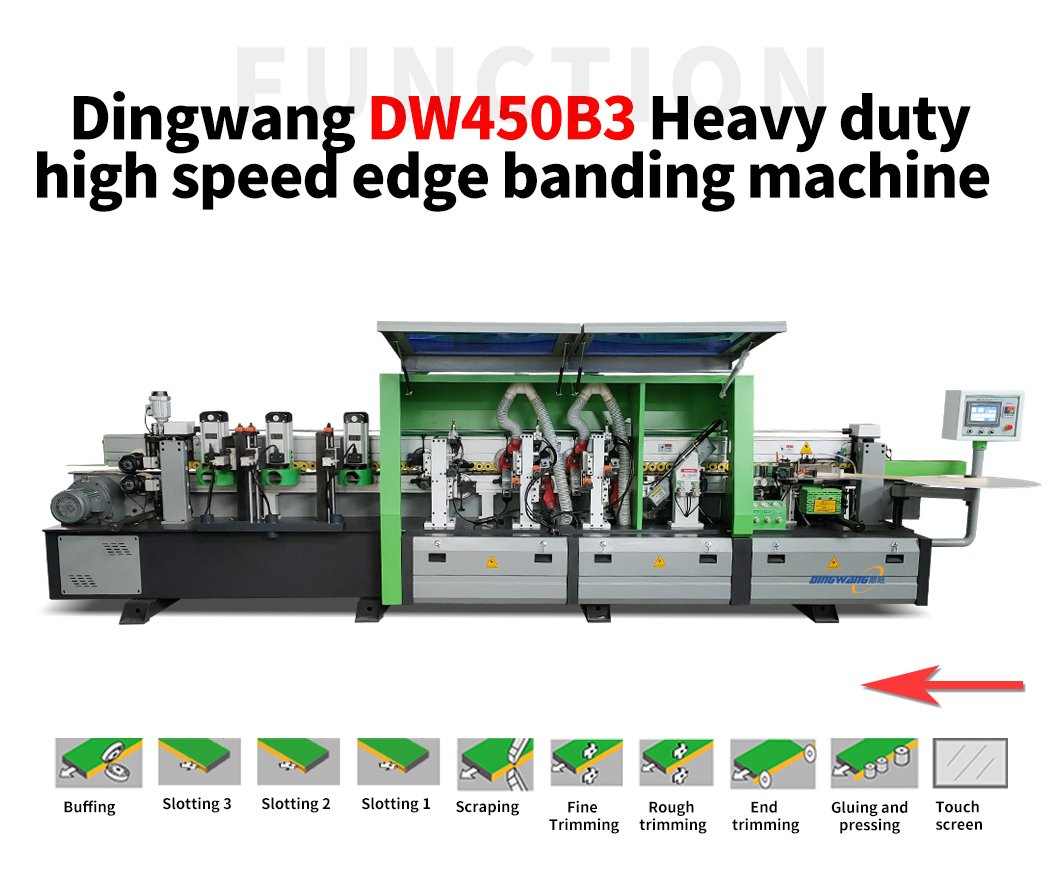

DW450B3 Unlock the advanced capabilities of this model, which boasts the following 9 exceptional functions:
1.Gluing and pressing 2.End trimming 3.Rough trimming 4.Fine trimming 5.Scraping 6. Slotting1 7. Slotting2 8. Slotting3 9.Buffing
High-Rigidity Structure Design:
The edge banding machine features a body made of thickened steel plates and an extra-thick worktable, with its machine surface processed by gantry milling, ensuring the equipment's firmness and stability.
The upper pressing mechanism uses a high aluminum beam with a large fixed colum
Function protection humanized function design:
Emergency stop switch The front and back are set for easy touch.
Phase sequence protection Protective equipment circuit.
Earth leakage protection Protect equipment and personnel.

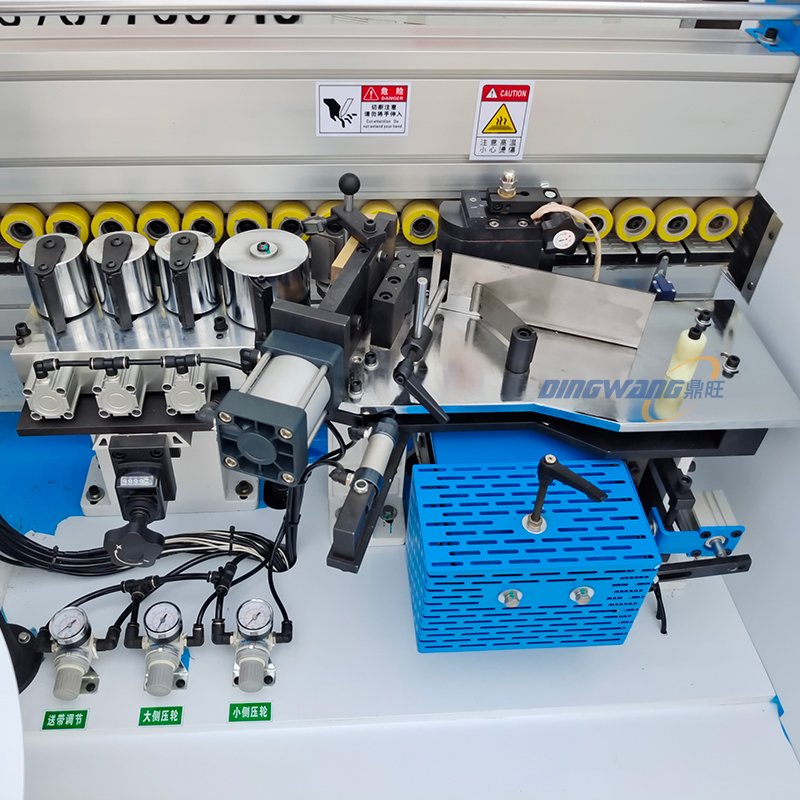

Ordinary Glue Pot
Heating the glue pot to melt the glue, and through the mesh threaded conveying structure, the glue is applied quickly and evenly with firm adhesion.

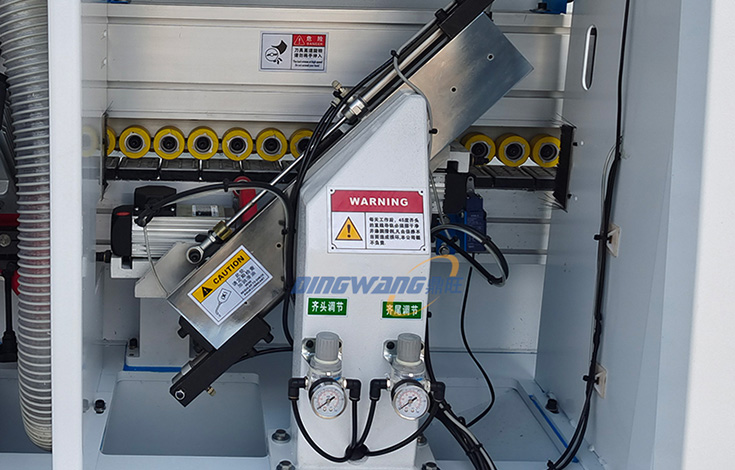

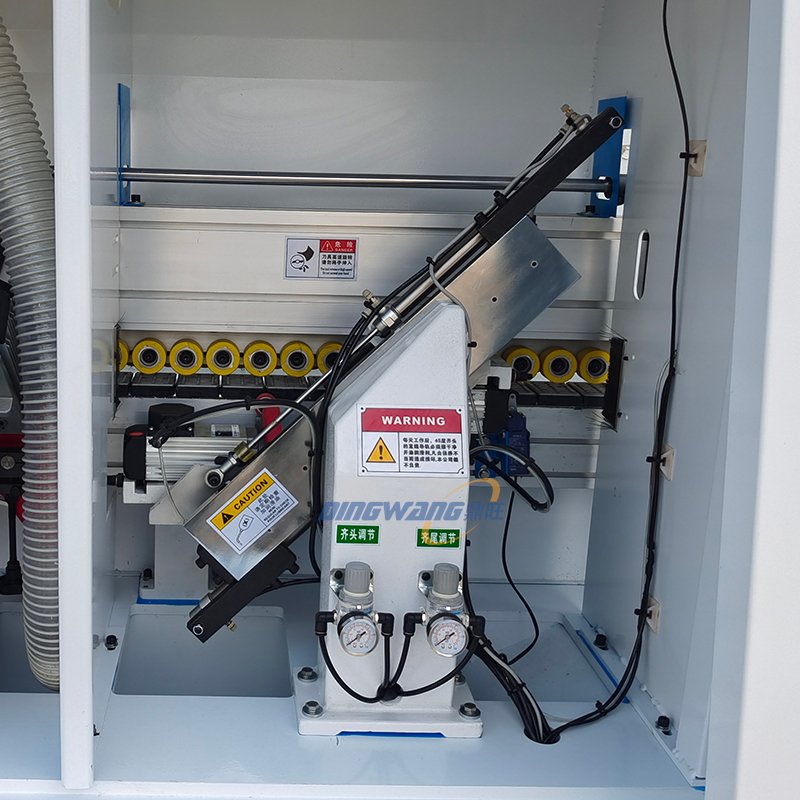

End Trimming Function
The End trimming function uses a high-speed motor to quickly cut off the excess edge banding strip, resulting in a smooth and perfect finish.

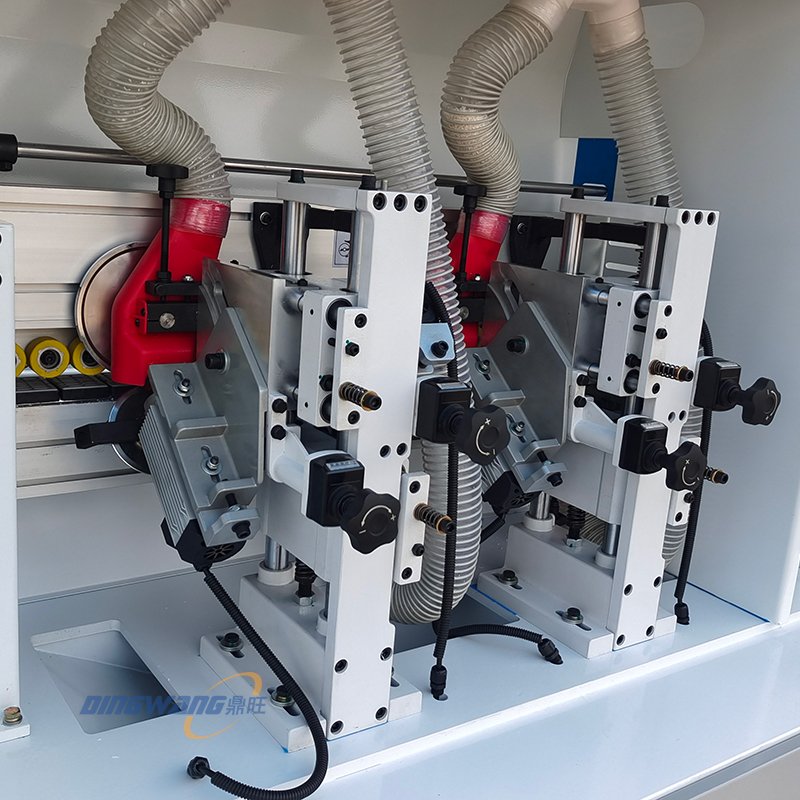

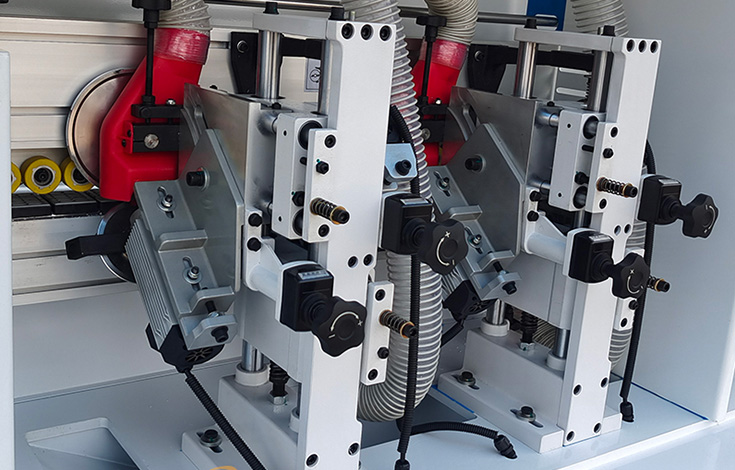

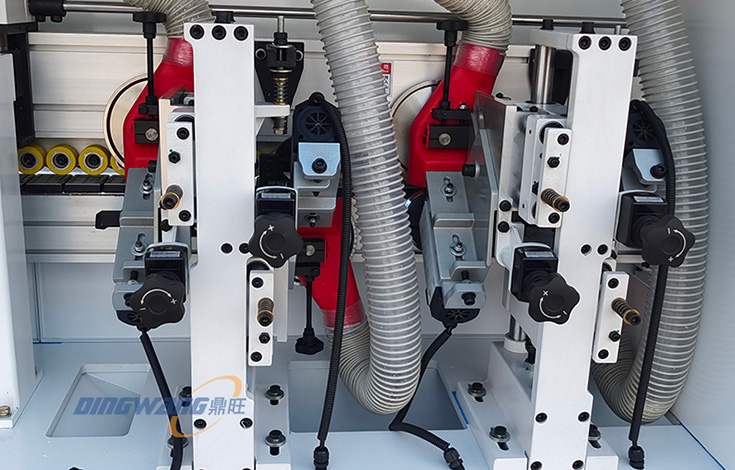

Rough Trimming and Fine Trimming Functions
The combination of rough trimming and fine trimming reduces tool wear and increases equipment life, and can trim hard materials such as PVC and acrylic edge banding.

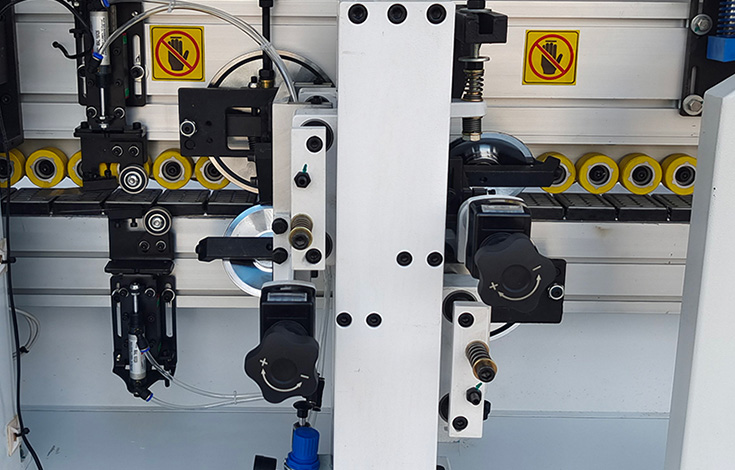

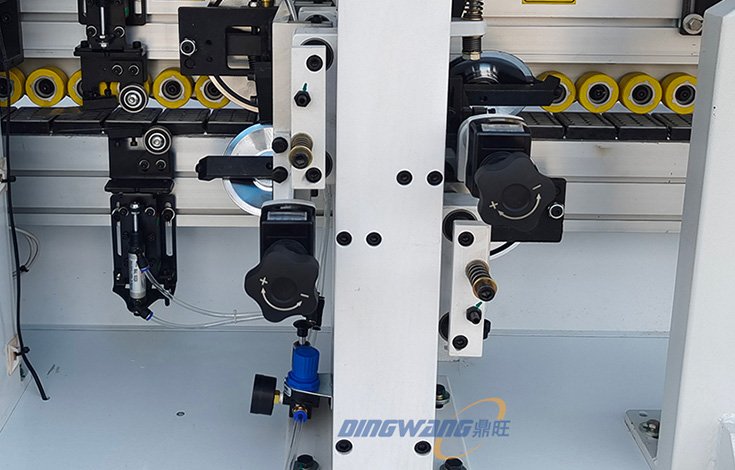

Scraping
Further trim the edges to eliminate the wavy lines caused by trimming and make the edges smoother.

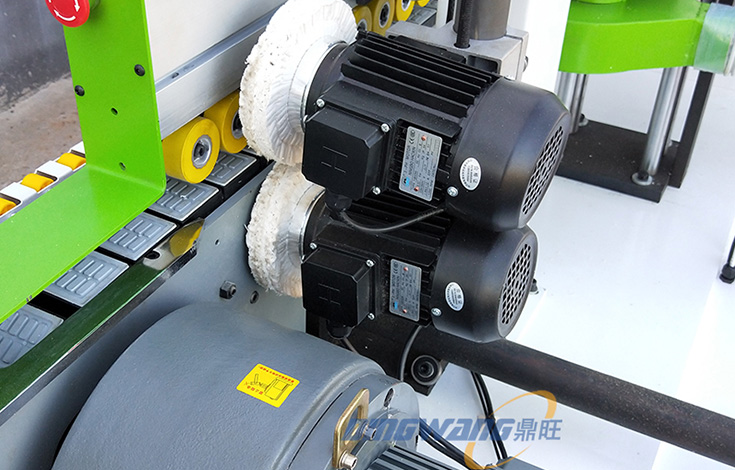

Buffing Function
Use a cotton buffing wheel to clean the processed boards, remove excess glue stains, and make the edge-sealing cross-section smoother and tidier through buffing.

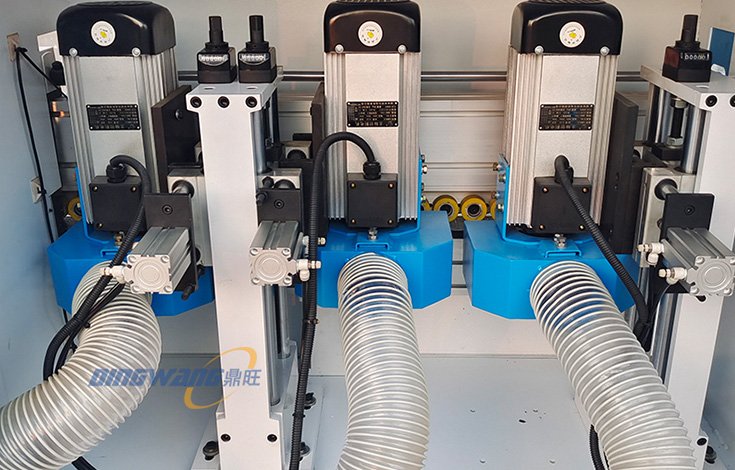

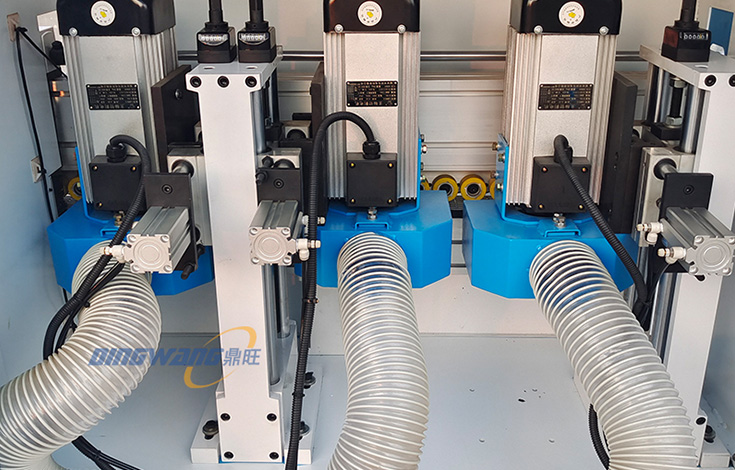

Horizontal Slotting Function
Horizontal slotting is used for direct slotting of sealing strips and door casing lines, reducing other processes and forming at one time, which is convenient and fast.
| Equipment Model | DW450B3 | Total Power | 22.23KW |
| Equipment size | 5700*900*1600MM | Power of End Trimming Motor | 0.55KW*2 |
| Weight | 2100KG | Power of Trimming Motor | 0.55KW*4 |
| Working Air Pressure | 0.8MPA | Power of Slotting Motor | 4KW*3 |
| Minimum Machining Length | 70MM | Power of Conveyor Motor | 3.7KW |
| Minimum Machining Width | 45MM | Preheating power of Edge Banding | 0.2KW |
| Processing Thickness | 10-55MM | Heating Power of Glue Tank | 1.8KW |
| Edge Band Width | 12-60MM | Power of Lifting Motor | 0.37KW |
| Edge Band Thickness | 0.5-3MM | Power of Buffing Motor | 0.18KW*2 |
| Running Speed | 18/20/24M/MIN |
