DW450B2

Product Feature

High-Rigidity Structure Design:

The edge banding machine features a body made of thickened steel plates and an extra-thick worktable, with its machine surface processed by gantry milling, ensuring the equipment's firmness and stability.

The upper pressing mechanism uses a high aluminum beam with a large fixed colum

Function protection humanized function design:
Emergency stop switch The front and back are set for easy touch.
Phase sequence protection Protective equipment circuit.
Earth leakage protection Protect equipment and personnel.

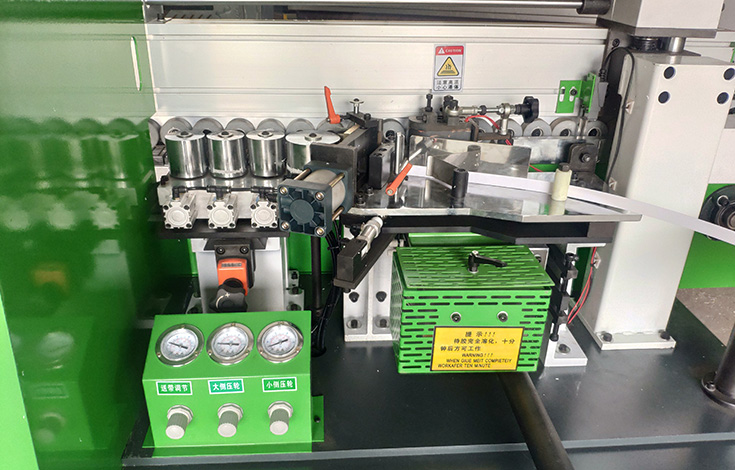

Ordinary Glue Pot
Heating the glue pot to melt the glue, and through the mesh threaded conveying structure, the glue is applied quickly and evenly with firm adhesion.

End Trimming Function
The  End trimming function uses a high-speed motor to quickly cut off the excess edge banding strip, resulting in a smooth and perfect finish.

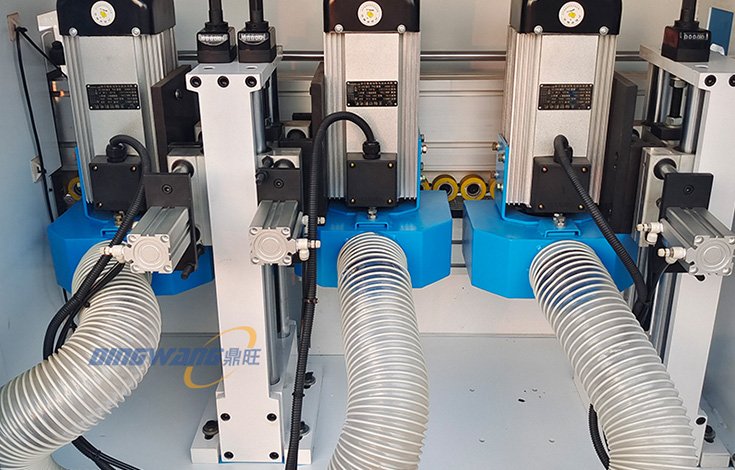

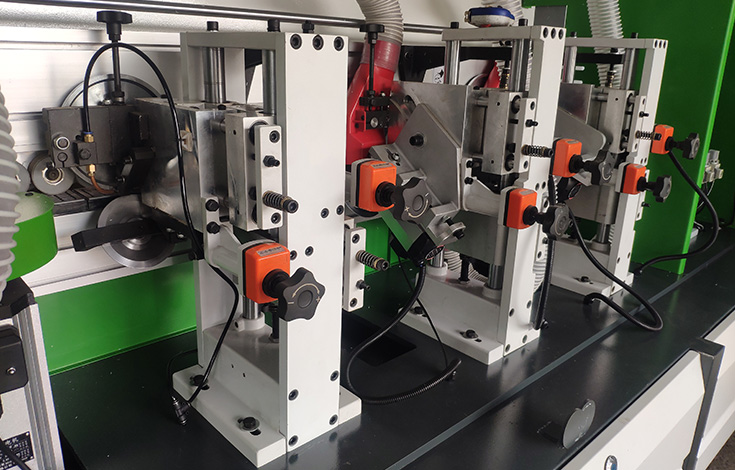

Rough Trimming and Fine Trimming Functions
The combination of rough trimming and fine trimming reduces tool wear and increases equipment life, and can trim hard materials such as PVC and acrylic edge banding.

Scraping
Further trim the edges to eliminate the wavy lines caused by trimming and make the edges smoother.

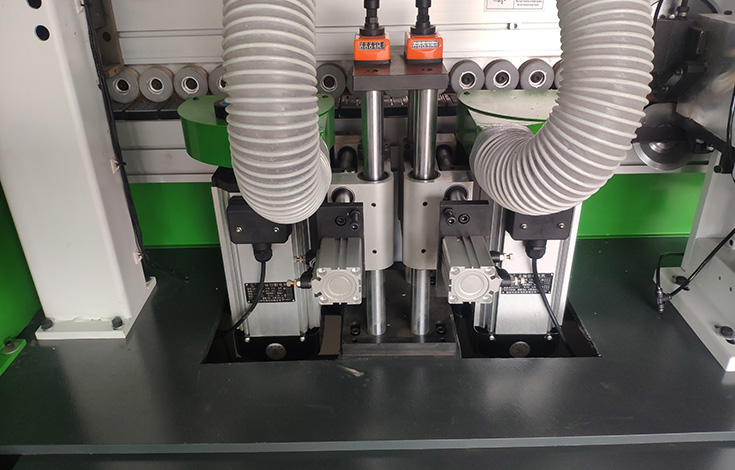

Dual-Group Buffing Function
The simultaneous operation of two Buffing groups makes the effect more perfect, and each group can also be defined to work independently.

Horizontal Slotting Function
Horizontal slotting is used for direct slotting of sealing strips and door casing lines, reducing other processes and forming at one time, which is convenient and fast.
